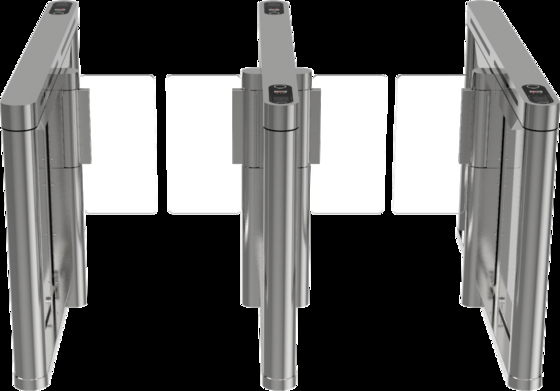

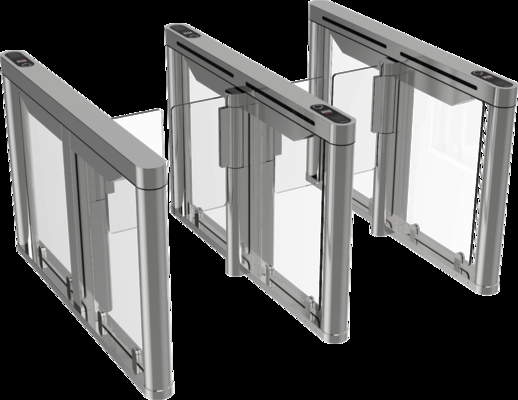

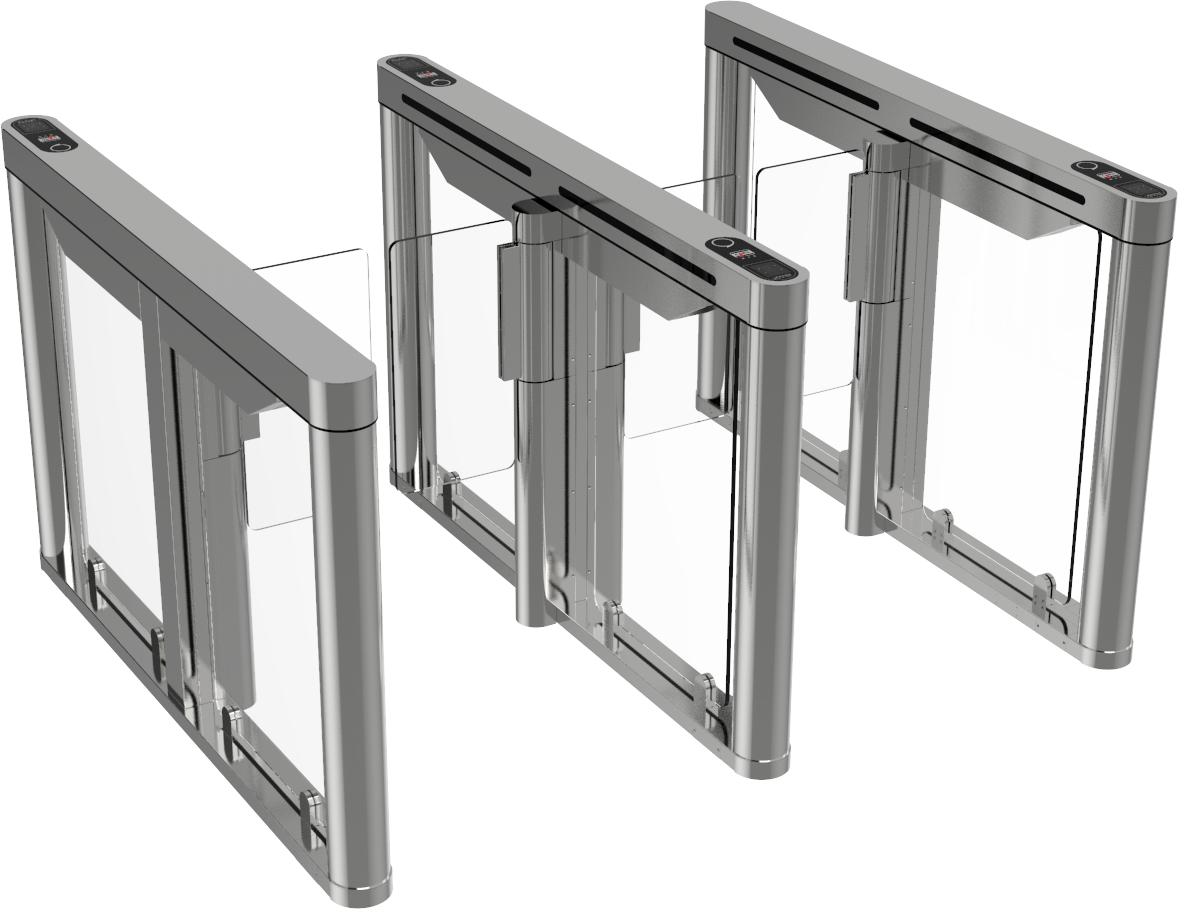

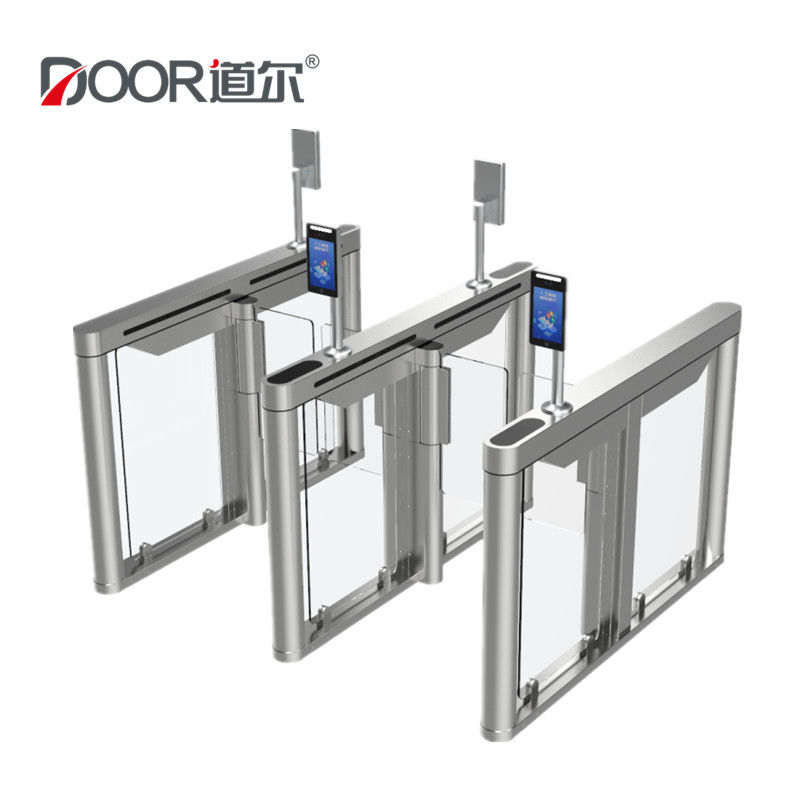

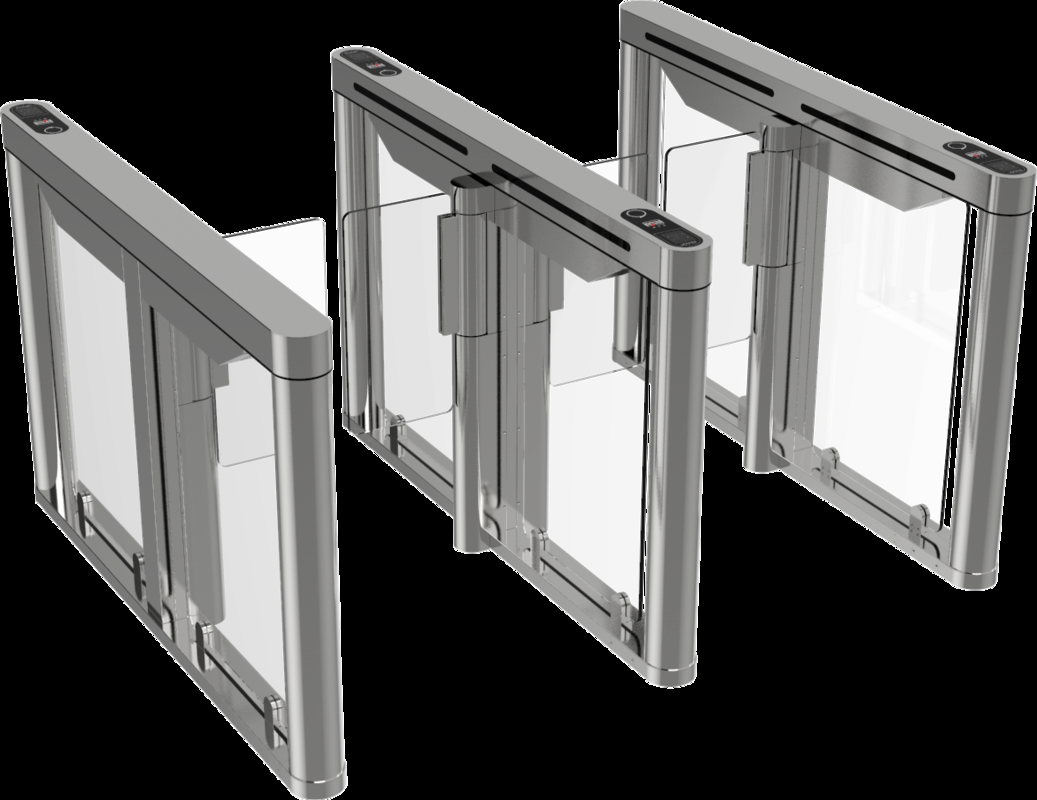

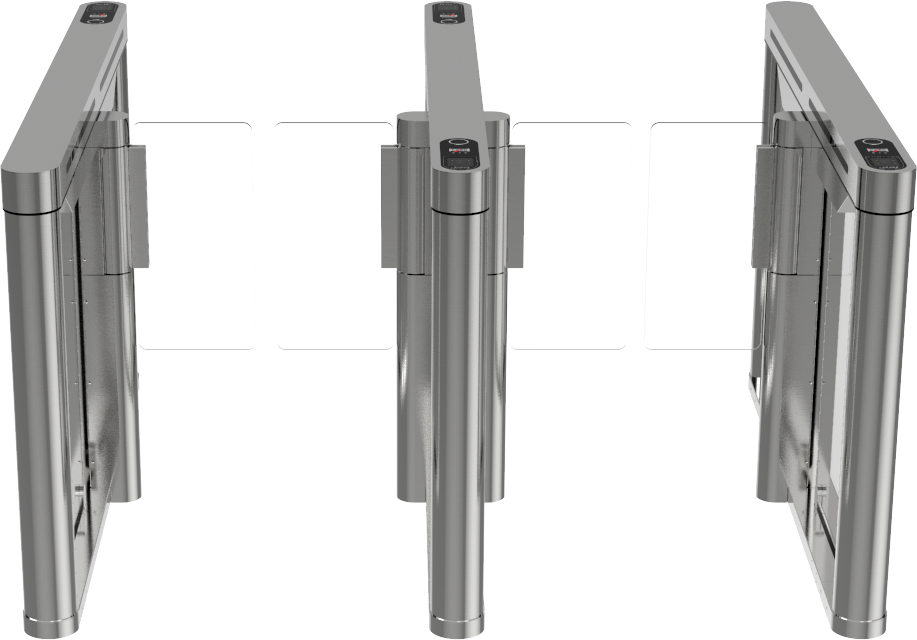

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition
304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 304 Stainless Steel Speed Gate with Servo Motor and Face Recognition
Grundlegende Informationen
Place of Origin: China
Markenname: DOOR or OEM
Zertifizierung: CE / IS09001
Model Number: DR.TD6623
Minimum Order Quantity: 1 lane
Preis: negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
Bestpreis Kontakt
Material: 304# Stainless Steel Suitable For: Access Control, Entrance And Exit Control
Turnstile Material: SUS304 Stainless Communication Interface: RS485,dry Contact
Power Supply: AC110/AC220+/-10% Swing arm available: Acrylics Or Tempered Glass
Driving Motor: Servo Motor Opening Signal Input:: Dry Contact
Working environment: -25℃-+70℃ Pass speed: 30-50p/m
Support System: Face Recognition,ic/id Card,fingerprint Motor: Servo motor
IR Sensor: 8 pairs Passage Width: Standard 600mm, max 900mm
IP Rating: IP42 Mean Cycles Between Failure: 20 million times
Voltage: AC110V/AC220V±10% 50-60Hz Operating Power: Single Core 100w, dual core 200w
Method of position: Motor + clutch + encoder Mtbf: 10 Million Times
Size: L1600×W160×H1030mm Weight: 80kg
Color: Silver
Hervorheben:

304 stainless steel speed gate

,

servo motor speed gate turnstile

,

face recognition speed gate turnstile

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition
Product Specifications
Attribute Value
Material 304# Stainless Steel
Suitable For Access Control, Entrance And Exit Control
Turnstile Material SUS304 Stainless
Communication Interface RS485, dry Contact
Power Supply AC110/AC220+/-10%
Swing arm available Acrylics Or Tempered Glass
Driving Motor Servo Motor
Opening Signal Input Dry Contact
Working environment -25℃-+70℃
Pass speed 30-50p/m
Support System Face Recognition, ic/id Card, fingerprint
Motor Servo motor
IR Sensor 8 pairs
Passage Width Standard 600mm, max 900mm
IP Rating IP42
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Operating Power Single Core 100w, dual core 200w
Method of position Motor + clutch + encoder
MTBF 10 Million Times
Size L1600×W160×H1030mm
Weight 80kg
Color Silver
Key Features
  • 8-pair infrared anti-pinch protection with fire alarm linkage
  • Triple pedestrian protection system: infrared sensors, pass logic, and return-when-blocked
  • Multiple operation modes: normally closed (locking/non-locking) and peak traffic
  • Memory opening, delay closing, and overtime closing functions
  • Bidirectional traffic capability with ≤180° swing arc
  • Integrated card/QR code reader with face recognition compatibility
  • Fire-safe free passage during power outages
  • Ultra-fast 0.5 second opening/closing speed
  • Servo motor driven for reliable, quiet operation with extended lifespan

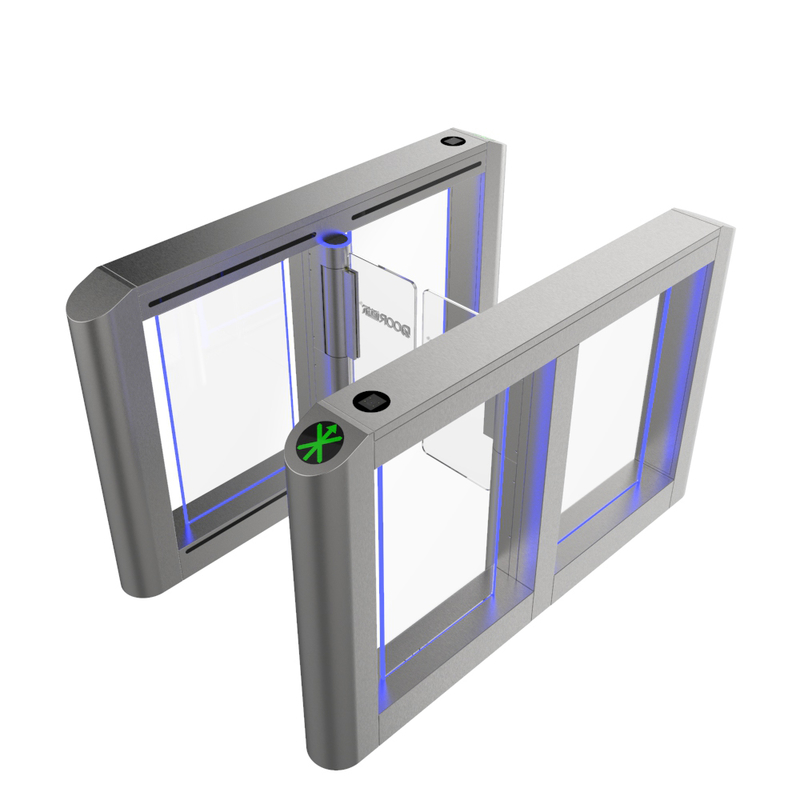

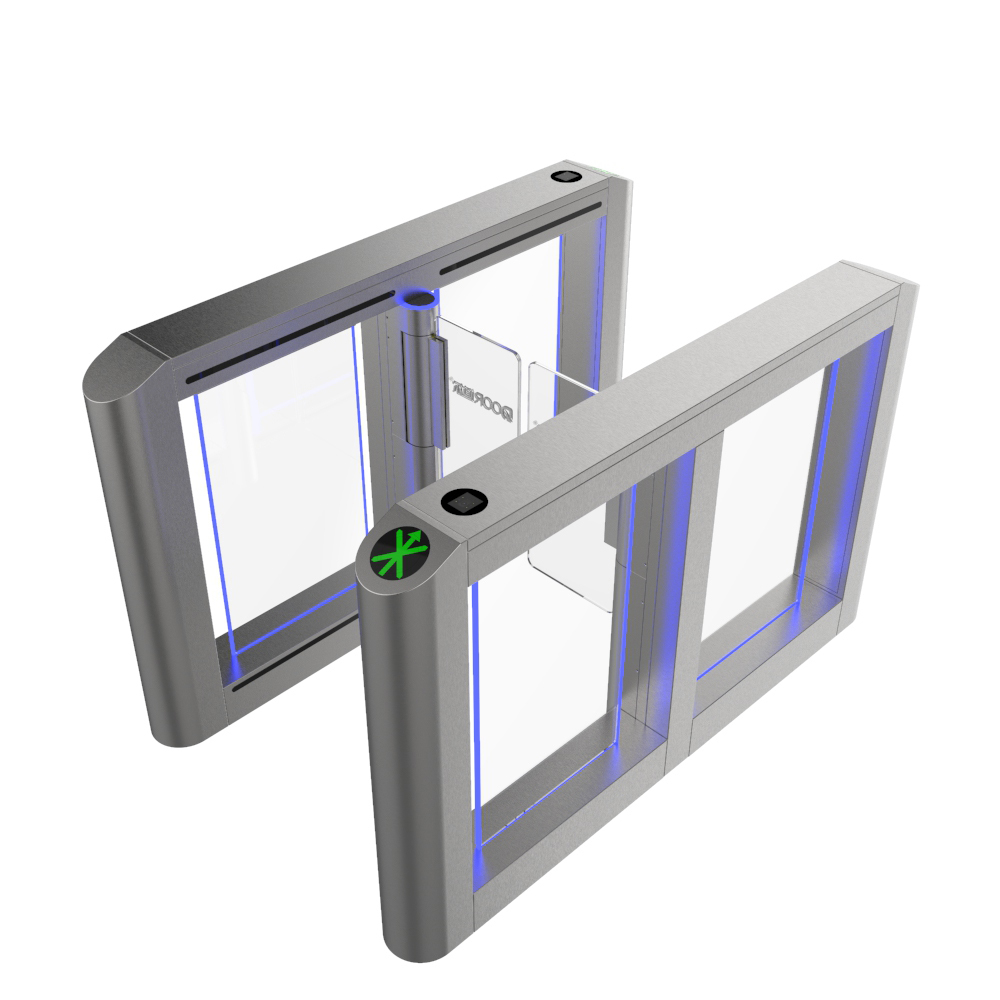

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 0
Applications

Widely used for official or corporate buildings, sectioning off certain areas in hotels (gyms, spas), industrial buildings or offices.

Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization

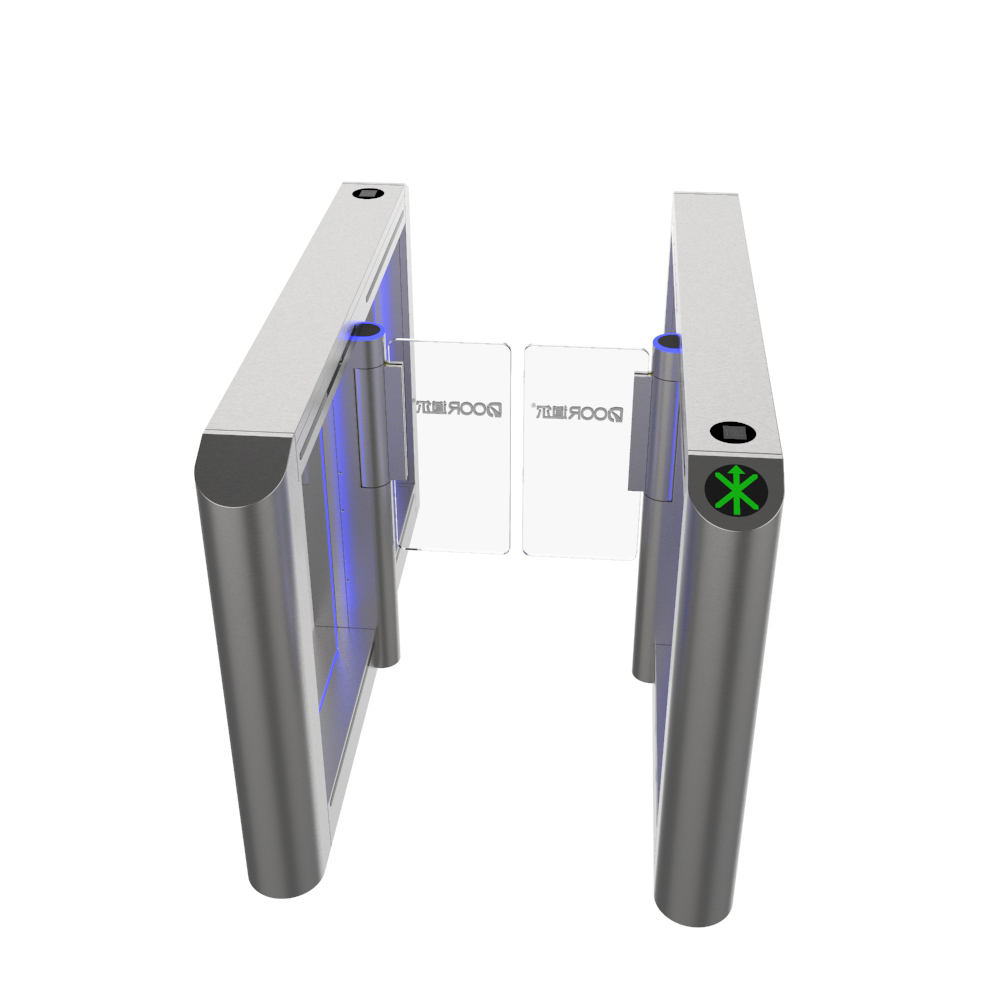

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition 1
Packing Information

Plywood case size: 167*35*114cm
G.W.: 85KG

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
