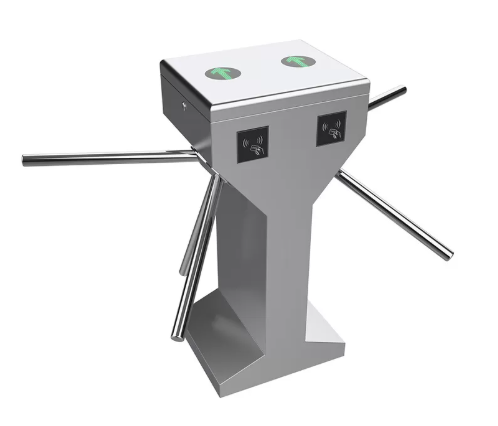

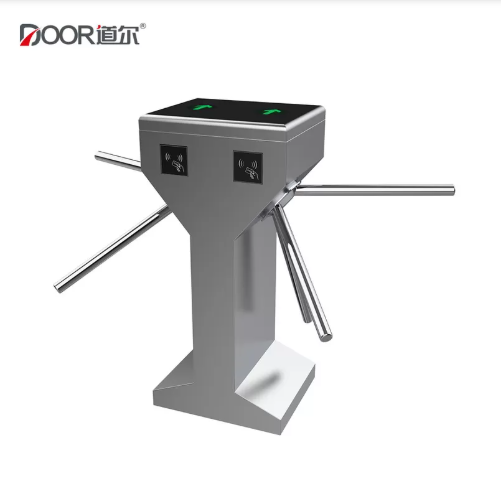

Industrial Heavy-Duty Tripod Turnstile with SUS304 Stainless Steel

Grundlegende Informationen

Place of Origin:	China
Markenname:	DOOR or OEM
Zertifizierung:	CE / IS09001
Model Number:	DRTD6371XS

Minimum Order Quantity:	2 sets
Preis:	negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Bestpreis Kontakt

Material:	304# Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485 TCP/IP
Power Supply:	AC110/AC220+/-10%	Swing arm available:	Acrylics Or Tempered Glass
Driving Motor:	DC24V Brushless Motor	Opening Signal Input::	Dry Contact
Working environment:	-20℃-+60℃	Pass speed:	20 personal/min
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	DC24V Brushless Motor
Passage Width:	500mm	IP Rating:	IP55
Mean Cycles Between Failure:	20 million times	Voltage:	AC110V/AC220V±10% 50-60Hz
Operating Power:	30W	Method of position:	Motor Driving
Mtbf:	5 Million Times	Size:	L420W330H9800mm
Opening Speed:	1s	Odm/oem::	Accepted
Hervorheben:	heavy-duty tripod turnstile gate , stainless steel tripod turnstile , industrial SUS304 turnstile gate

LumenSync Turnstile / LumenSync Gate

Product Specifications

▍Structural Integrity
・Armor-Graded SUS304｜Brushed Finish Anti-Vandalism
・Reinforced Body: 2.0mm Top Cover + 1.5mm Full-Wrap Steel Shell
・Heavy-Duty Tripod Arm: Ø32mm Stainless Steel Tube
・Dimensions: 420(L)×330(W)×980(H)mm (Compact Footprint)

▍Performance Engineering
・HyperFlow Passage:550mm Clear Width｜20+ Persons/Min (30% Faster Than Industry Avg.)
・Lightning Access: 1s Opening Response｜5ms Motor Activation
・Extreme Environment Ready: -20℃~60℃ Operation｜IP55 Shield (Dust/Jet Water Resistant)
・Military Durability: 5 Million MCBF｜20-Year Corrosion Resistance

Key Features

Seamless Third-Party Integration: Compatible with industry-standard access control devices (IC/ID card readers, QR code scanners, facial recognition terminals, etc.).
Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release during emergencies.
High-Speed Detection: 8 military-grade infrared sensors with advanced algorithms prevent tailgating, reverse passage, and clamping.
Enhanced Safety: Multi-layer anti-pinch design and optional widened lane for luggage/wheelchair access.
Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces, works with all major access control systems.

(Note: Recognition systems not included; product provides standardized connection interfaces only)

Applications

Widely used for official or corporate buildings, sectioning off certain areas in University lab access points, industrial buildings or hospital radiology departments.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
