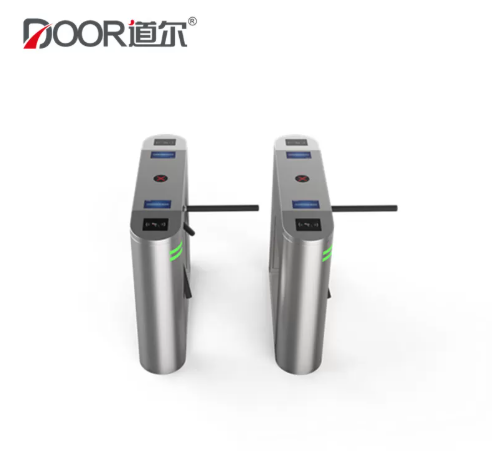

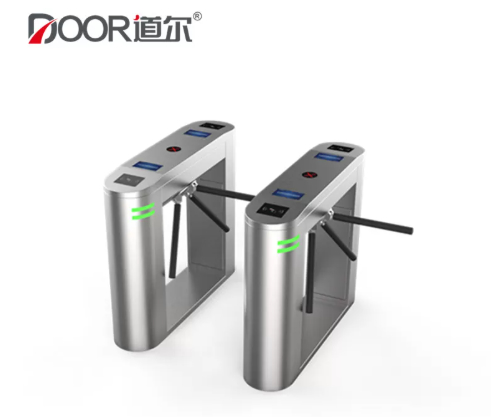

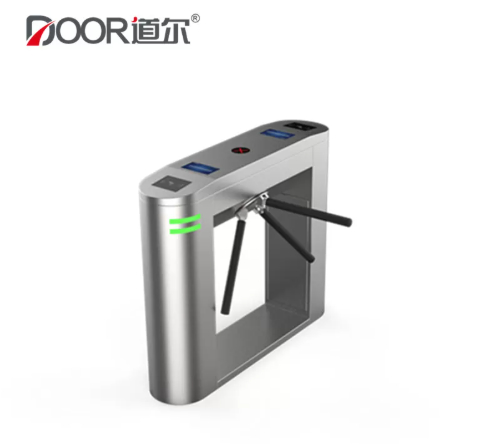

304 Stainless Steel Tripod Turnstile Gate with Face Recognition

304 Stainless Steel Tripod Turnstile Gate with Face Recognition
304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition 304 Stainless Steel Tripod Turnstile Gate with Face Recognition
Grundlegende Informationen
Place of Origin: China
Markenname: DOOR or OEM
Zertifizierung: CE / IS09001
Model Number: WD.TD.6380X-EN
Minimum Order Quantity: 1 Unit
Preis: negotiable
Packaging Details: wood carton
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 2500 sets per month
Bestpreis Kontakt
Material: 304 Stainless Steel Turnstile Material: SUS304 Stainless
Communication Interface: RS232 Swing arm available: Acrylics Or Tempered Glass
Opening Signal Input:: Dry Contact Working environment: -15℃-60℃
Pass speed: 20 personal/min Support System: Face Recognition,ic/id Card,fingerprint
Passage Width: 600mm (MAX) IP Rating: IP55
Mean Cycles Between Failure: 20 million times Voltage: AC110V/AC220V±10% 50-60Hz
Method of position: Motor Driving Mtbf: 5 Million Times
Size: 1200x280x1000m Access Means:: IC Card; Face Recognition
Hervorheben:

304 stainless steel tripod turnstile gate

,

face recognition turnstile gate

,

stainless steel turnstile with warranty

DC24V Ultra-Safe | 30W Energy Star | 550mm High-Flow Passage
Product Specifications
Attribute Value
Material 304 Stainless Steel
Turnstile Material SUS304 Stainless
Communication Interface RS232
Swing arm available Acrylics Or Tempered Glass
Opening Signal Input Dry Contact
Working environment -15℃-60℃
Pass speed 20 personal/min
Support System Face Recognition, IC/ID Card, Fingerprint
Passage Width 600mm (MAX)
IP Rating IP55
Mean Cycles Between Failure 20 million times
Voltage AC110V/AC220V±10% 50-60Hz
Method of position Motor Driving
MTBF 5 Million Times
Size 1200x280x1000mm
Access Means IC Card; Face Recognition
Structural Integrity
  • Armor-Graded SUS304 | Brushed Finish Anti-Vandalism
  • Reinforced Body: 2.0mm Top Cover + 1.5mm Full-Wrap Steel Shell
  • Heavy-Duty Tripod Arm: Ø32mm Stainless Steel Tube
  • Dimensions: 420(L)×330(W)×980(H)mm (Compact Footprint)
Performance Engineering
  • HyperFlow Passage: 550mm Clear Width | 20+ Persons/Min (30% Faster Than Industry Avg.)
  • Lightning Access: 1s Opening Response | 5ms Motor Activation
  • Extreme Environment Ready: -20℃~60℃ Operation | IP55 Shield (Dust/Jet Water Resistant)
  • Military Durability: 5 Million MCBF | 20-Year Corrosion Resistance
Key Features
  • Seamless Third-Party Integration: Compatible with industry-standard access control devices
  • Emergency Safety: Dedicated fire button interfaces with the system for automatic gate release
  • High-Speed Detection: 8 military-grade infrared sensors prevent tailgating and reverse passage
  • Enhanced Safety: Multi-layer anti-pinch design and optional widened lane access
  • Seamless Integration: Compatible with RS485, TCP/IP (optional), and dry contact interfaces
Note: Recognition systems not included; product provides standardized connection interfaces only
Applications
Widely used for official or corporate buildings, university lab access points, industrial buildings, and hospital radiology departments.
304 Stainless Steel Tripod Turnstile Gate with Face Recognition 0
Customization Options
  • Customized logo (Min. order: 2 pieces)
  • Customized packaging (Min. order: 2 pieces)
  • Graphic customization (Min. order: 2 pieces)
Supplier's Customization Ability
  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
304 Stainless Steel Tripod Turnstile Gate with Face Recognition 1
Shipping Information
Shipping fee and delivery date to be negotiated. Contact supplier for more details.
